Category Name : Universal Angle Block Set AB-163,AB-164 萬能角度塊規 Prodouts







ORDER NO.L×W×HWEIGHTCODE NO.
Inquriy
AB-163
Vee blocks:3"L×1 3/16"W×1 3/16"H Angle Plates:2 3/4" L×1 3/16"W× 5/64"H
2kg
2006-010
 Inquriy
AB-164
Vee blocks:4"L×1 1/2"W×1 1/2"H Angle Plates:4"L1 1/2" W× 5/32"AH
3.8kg
2006-011
 Inquriy
No sine plate, sine vise, angle chart or gauge block needed！
● A slope at any angle can be provided by installing a block or blocks on a machine vise up to 5%

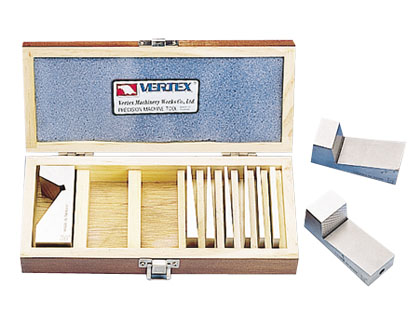

● 8 pieces in a deluxe wooden box include:10°,15°&30° vee blocks and 5 angle plates-1° to 5° for AB-164
● Heat treated 45°-50° HRC & ground to 10sec. *9pcs angle blocks( ½°,1°,2°,3°,4°,5°,10°,15°,30°) for AB-163
