Category Name : Electrods Vise EDM USE, VEH-20 電極柄加萬力

Prodouts

ORDER NO.

MATERIAL

LENGTH

WIDTH

JAW OPENING

JAW HEIGHT

HARDEN

WEIGHT

CODE NO.

Inquriy

VEH-20

SKS

HRC58°-60°

0.8KG

2008-001

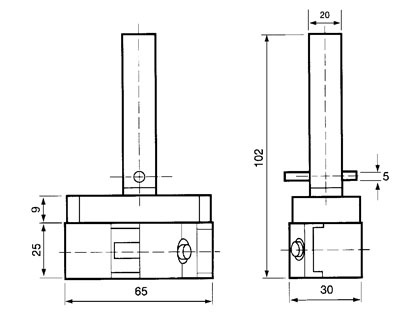

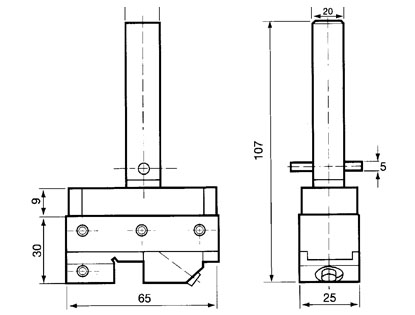

ELECTROOE HOLDERS FOR ELECTRO DISCHARGE MACHINE
Mini vise can be used in fixed electrode hold-ers. The opening with a cross V groove on the vise can do electric discharging both by vertical way and harizontal way for various-shape workieces. The max. opening on the vise is 20mm.
