Category Name : Tool Maker Vise STAINLESS, VSTV-10V 迷你型不繡鋼萬力 Prodouts

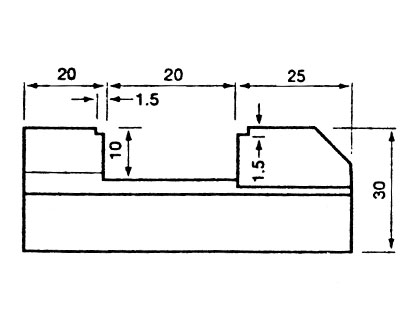

ORDER NO.MATERIALLENGTHWIDTHJAW OPENINGJAW HEIGHTHARDENWEIGHTCODE NO.
Inquriy
VSTV-10V
SUS440
65
25
20
10
56°~58°HRC
0.3KG
2008-070
Inquriy
Squareness:Within 0.005m/m

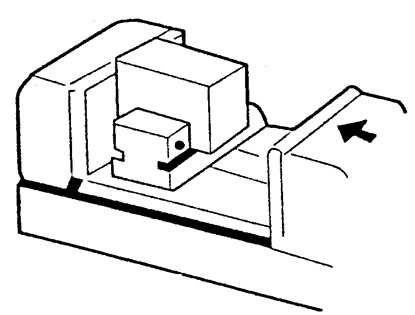

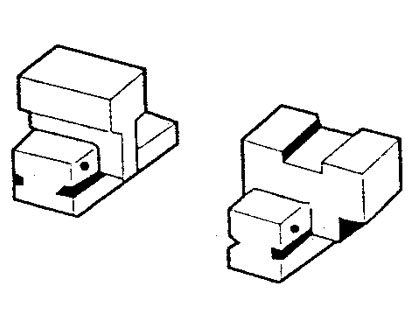

Tool makers vise of mini type which can be put in a bigger vise to process the small and precise workpiece. Also it can be used in an E.D.M. machine and grinding machine. Squareness and parallelism:within 0.003m/m.
