Category Name : "VERTEX Hi-Power Mini Type Permanent Magnetic Plate VG-404H,407H,410H維昶VERTEX牌超強 Prodouts







ORDER NO.DIAMETER(mm)PHEIGHTWEIGHTCODE NO.
Inquriy
VG-404H
100×100
5(2+3)
50
5KG
2015-100
 Inquriy
VG-407H
100×180
5(2+3)
50
8KG
2015-101
 Inquriy
VG-410H
100×250
5(2+3)
50
11KG
2015-102
 Inquriy

"VERTEX TOOL - Hi-Power Mini Type Permanent Magnetic Plate VG-404H,407H,410H"

"維昶VERTEX牌超強力永久磁盤"

APPLICATION
This chuck is designed for objects with weaker magnetic force. This chuck can be placed in the plate of large permanent magnetic chuck or electro-magnetic chuck for attraction or attachment.

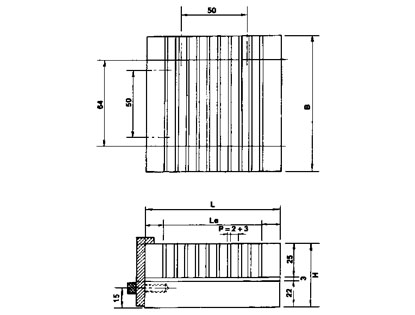

ORDER NO. CHUCKING SIZE TESTING BLOCK
B L Le
VG-404H 100 100 72

□50×25t TEST BLOCK (TUNGSTEN) 210N(21kgf)

VG-407H 100 180 152
VG-410H 100 250 222
