Category Name : "VERTEX TOOL Round Type Magnetic Plate VGD-06,08,10,12維昶VERTEX牌圓形粗目磁盤" Prodouts







ORDER NO.PHEIGHTWEIGHTCODE NO.
Inquriy
VGD-06
9(2+7)
78
9.8KG
2015-150
Inquriy
VGD-08
9(2+7)
78
12.8KG
2015-151
Inquriy
VGD-10
9(2+7)
78
20.2KG
2015-152
Inquriy
VGD-12
9(2+7)
78
30.4KG
2015-153
Inquriy

"VERTEX TOOL Round Type Magnetic Plate VGD-06,08,10,12"

"維昶鷹牌圓形粗目磁盤"

ORDER NO.VGD TYPE
Magnetic field intensity:Higher than 650 gauss

APPLICATION
Suitable for light cutting and grinding on lathe, grinder, EDM and the Rotary Table.

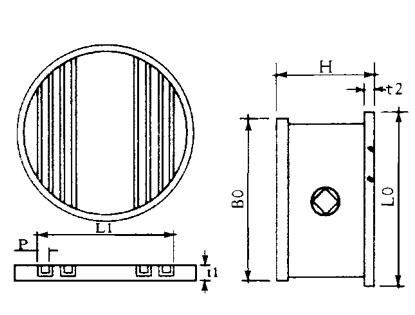

ORDER NO. FACE PLATE BOTTOM PLATE
B0 t1 L1 t2 L0
VGD-06 150 21 101 18 200
VGD-08 200 137 200
VGD-10 250 191 250
VGD-12 300 227 305
