Category Name : Chuck Controller For Rectify & Demagnetize, VCC-705,805A,815,820 脫磁整流器 Prodouts







ORDER NO.WEIGHTCODE NO.
Inquriy
VCC-705
3.5KG
2015-380
 Inquriy
VCC-805A
18KG
2015-381
 Inquriy
VCC-815
20KG
2015-382
 Inquriy
VCC-820
32KG
2015-383
 Inquriy

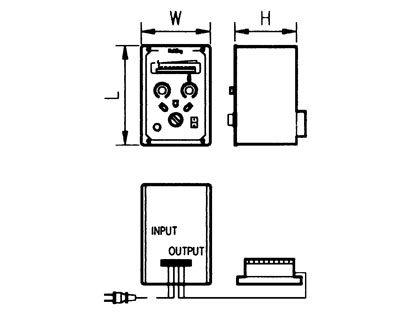

ORDER NO.VCC-705(5A)
APPLICATION
1. Suitable for standard type of electric magnetic chucks.
2. With current capacity of 5A; demagnetizing time is 6-15 seconds.
3. Precisely adjust the magnetic force of electric magnetic chucks and indicate LED voltage.
4. Suitable for any kind of electric magnetic chucks

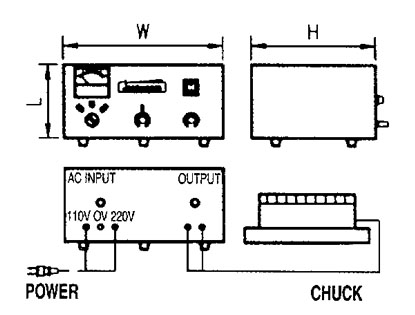

ORDER NO.VCC-805A(10A)
VCC-815(15A)
APPLICATION
1. Suitable for standard type of electric magnetic chucks.
2. With current capacity of 10A and 15A; demagnetizing time is 6-15 seconds.
3. Precisely adjust the magnetic force of electric magnetic chucks and indicate LED voltage and current.
4. Suitable for any kind of electric magnetic chucks

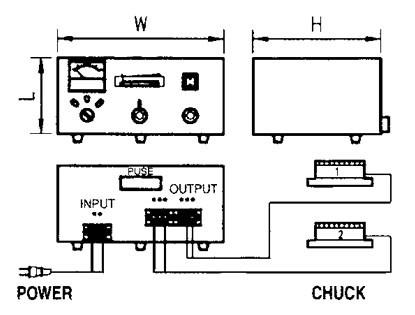

ORDER NO.VCC-820(20A)
APPLICATION
1. Suitable for super powerful type of big electric magnetic chucks and could control 2 chucks at the same time.
2. With current capacity of 20A; demagnetizing time is 8-15 seconds.
3. Precisely adjust the magnetic force of electric magnetic chucks and indicate LED voltage.
4. Suitable for any kind of electric magnetic chucks
ORDER NO. INPUT VOL TAGE(SINGLE PHASE) OUTPUT DIMENSION
VOLTAGE CURRENT L W H
VCC-705 AC 110V/220V DC 0-100V 5A 200 137 122
VCC-805A AC 110V/220/380/415/440V DC 0-100V 10A 150 330 260
VCC-815 AC 220/380/415/440V DC 0-120V 15A 150 330 260
VCC-820 AC 220/380/415/440V DC 0-120V 20A 180 385 295
