Magnetic Lifter VGP-100,VGP-200 永久式吊重磁盤
Category Name :
Magnetic Lifter VGP-100,VGP-200 永久式吊重磁盤
Prodouts
ORDER NO.
CAPA CITY
WEIGHT
CODE NO.
Inquriy
VGP-100
1000KG
25.8KG
2018-040
Inquriy
VGP-200
2000KG
46.8KG
2018-041
Inquriy
FEATURES
●
Normal operation is not influenced on power off or system breakdown, as there is permanent magnet.
Cam mechanism, easy operation.
●
Ground surface of work-piece may be attracted to be
●
scrap occasionally, please be carefully.

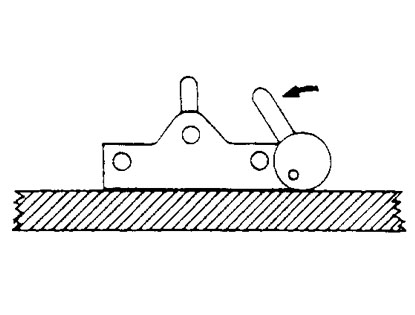

LOADING
●
Take the magnetic table on the work-piece, and move it at the vertical position
UNLOADING
Move th level at the horizontal position, the work-piece will be separated.

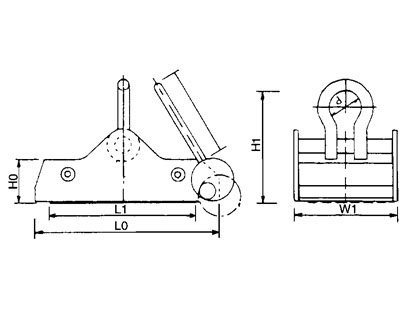

ORDER NO.
W1
L1
L0
H0
H1
D
I
VGP-100
204
298
366
65
125
50
135
VGP-200
330
380
445
65
130
50
135
│
