High Pressures Adjustable Nozzle, VPN-SERIES
Category Name :
High Pressures Adjustable Nozzle, VPN-SERIES
Prodouts
ORDER NO.
CODE NO.
Inquriy
VPN-8120
2020-031
Inquriy
VPN-8140
2020-032
Inquriy
VPN-8160
2020-033
Inquriy
VPN-4120
2020-034
Inquriy
VPN-4140
2020-035
Inquriy
VPN-4160
2020-036
Inquriy
VPN-8330
2020-037
Inquriy
VPN-8350
2020-038
Inquriy
VPN-8370
2020-039
Inquriy
VPN-2140
2020-040
Inquriy
VPN-2160
2020-041
Inquriy
VPN-2180
2020-042
Inquriy
VPN-1015
2020-043
Inquriy
VPN-1020
2020-044
Inquriy
VPN-1040
2020-045
Inquriy
VPN-1060
2020-046
Inquriy
VPN-2030
2020-047
Inquriy
VPN-2050
2020-048
Inquriy
VPN-2070
2020-049
Inquriy
VPN-2440
2020-050
Inquriy
VPN-2460
2020-051
Inquriy
VPN-2480
2020-052
Inquriy

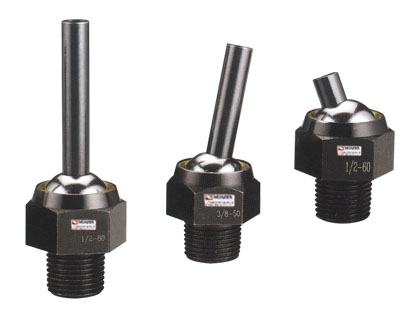

The nozzle;s angle can be adjusted to meet operating needs, and the nozzle can be fixed in place to ensure it is accuracy aimed at the workpiece.
Extremely easy to operate.
Suitable for all types of high-, medium-, and low-pressure cooling fluids.
Can be used on CNC processing machines, CNC lathes, milling machines, grinding machines, and all other kinds of machine tools.
It can enhance processing eficiency and precision, while cutting costs

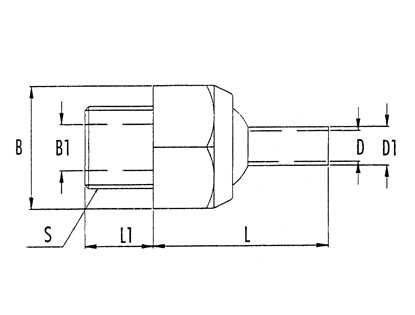

ORDER NO.
SPECIFICATIONS
MAJOR SIZE
D
THREAD(S)
L
L1
D1
B1
HEXAGRAM(B)
VPN-8120
1/8" PT-Ø4×20L
4
PT 1/8
20
10
6
6
17
VPN-8140
1/8" PT-Ø4×40L
4
PT 1/8
40
10
6
6
17
VPN-8160
1/8" PT-Ø4×60L
4
PT 1/8
60
10
6
6
17
VPN-4120
1/4" PT-Ø4×20L
4
PT 1/4
20
10
6
6
17
VPN-4140
1/4" PT-Ø4×40L
4
PT 1/4
40
10
6
6
17
VPN-4160
1/4" PT-Ø4×60L
4
PT 1/4
60
10
6
6
17
VPN-8330
3/8" PT-Ø6×30L
6
PT 3/8
30
13
8
10
24
VPN-8350
3/8" PT-Ø6×50L
6
PT 3/8
50
13
8
10
24
VPN-8370
3/8" PT-Ø6×70L
6
PT 3/8
70
13
8
10
24
VPN-2140
1/2" PT-Ø8×40L
8
PT 1/2
40
18
10
12
32
VPN-2160
1/2" PT-Ø8×60L
8
PT 1/2
60
18
10
12
32
VPN-2180
1/2" PT-Ø8×80L
8
PT 1/2
80
18
10
12
32
VPN-1015
M10×1.25P×Ø4×15L
4
M10×1.25P
15
10
6
6
17
VPN-1020
M10×1.25P×Ø4×20L
4
M10×1.25P
20
10
6
6
17
VPN-1040
M10×1.25P×Ø4×40L
4
M10×1.25P
40
10
6
6
17
VPN-1060
M10×1.25P×Ø4×60L
4
M10×1.25P
60
10
6
6
17
VPN-2030
M20×1.5P×Ø6×30L
6
M20×1.5P
30
13
8
10
24
VPN-2050
M20×1.5P×Ø6×50L
6
M20×1.5P
50
13
8
10
24
VPN-2070
M20×1.5P×Ø6×70L
6
M20×1.5P
70
13
8
10
24
VPN-2440
M24×2.0P×Ø8×40L
8
M24×2.0P
40
18
10
12
32
VPN-2460
M24×2.0P×Ø8×60L
8
M24×2.0P
60
18
10
12
32
VPN-2480
M24×2.0P×Ø8×80L
8
M24×2.0P
80
18
10
12
32
│
