Category Name : vertex-Cast Iron-Surface Plates,VS-01~13 精密鑄鐵定盤 Prodouts







ORDER NO.WEIGHTCODE NO.
Inquriy
VS-01
7.1KG
2021-001
 Inquriy
VS-02
11.1KG
2021-002
 Inquriy
VS-03
10.9KG
2021-003
 Inquriy
VS-04
12.6KG
2021-004
 Inquriy
VS-05
20.1KG
2021-005
 Inquriy
VS-06
24KG
2021-006
 Inquriy
VS-07
50.4KG
2021-007
 Inquriy
VS-08
56KG
2021-008
 Inquriy
VS-09
64.5KG
2021-009
 Inquriy
VS-10
92.9KG
2021-010
 Inquriy
VS-11
117.9KG
2021-011
 Inquriy
VS-12
313KG
2021-012
 Inquriy
VS-13
431
2021-013
 Inquriy

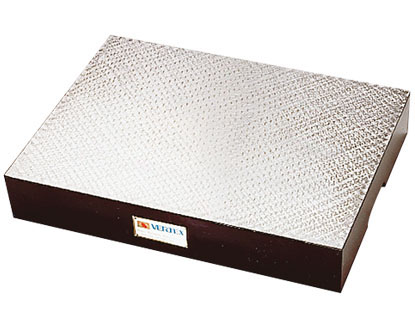

"Vertex-Cast Iron-Surface-Plates VS-01~13"

"精密鑄鐵定盤"



1.



 These surface plates are designed for a diversity of applications where a smooth surface is needed.
2. Rigidity and lasting accuracy are ensured by adequate top and side thickness and nbbed construcntion.
3. The surfaces are free from pinholes.
Precisely finished by planing and hand scraping, suitable for various kinds of highest precision work, inspection and countless other uses.
ORDER NO. Size(mm) SURFACE ACCURACY(mm)
VS-01 200×200×50 0.005/100
VS-02 250×250×50
VS-03 250×300×50
VS-04 300×300×50
VS-05 300×400×50 0.006/100
VS-06 300×450×65
VS-07 450×450×75
VS-08 500×500×70
VS-09 450×600×100
VS-10 600×600×100
VS-11 600×900×100 0.007/100
VS-12 900×900×100
VS-13 900×1200×125
