　　 　 Products Index > VERTEX-TOOLING -SYSTEM-ER-COLLET-DRILL-TAPPING-CHUCK-HOLDER-ARBOR搪孔攻牙刀桿 > High Speed Chuck BT30,BT40,BT50,C25,UC10,UC16-SERIES UC高速夾頭主體

Category Name : High Speed Chuck BT30,BT40,BT50,C25,UC10,UC16-SERIES UC高速夾頭主體 Prodouts

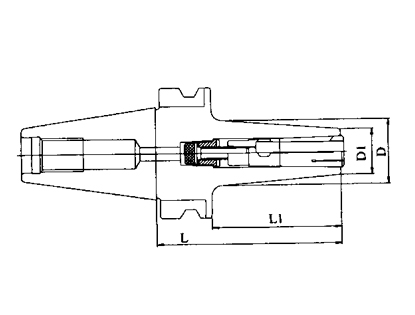

ORDER NO.LL1dDD1COLLETWEIGHTCODE NO.
Inquriy
BT30-UC10-70
70
48
30
22
UC10
0.7KGS
3218-001
 Inquriy
BT40-UC10-90
90
63
32
22
UC10
1.4
3218-002
 Inquriy
BT40-UC16-90
90
63
40
30
UC16
1.5
3218-003
 Inquriy
BT50-UC10-110
110
72
36
22
UC10
4.1
3218-004
 Inquriy
BT50-UC16-120
120
82
42
30
UC16
4.5
3218-005
 Inquriy
C25-UC10-150
150
50
25
22
UC10
0.6
3218-030
 Inquriy
C25-UC10-200
200
50
25
22
UC10
0.8
3218-031
 Inquriy
UC10-6
56.5
6
15
0.06
3218-060
 Inquriy
UC10-8
56.5
8
15
0.05
3218-061
 Inquriy
UC10-10
56.5
10
15
0.04
3218-062
 Inquriy
UC16-10
67
10
21
0.12
3218-090
 Inquriy
UC16-12
67
12
21
0.11
3218-091
 Inquriy
UC16-14
67
14
21
0.09
3218-092
 Inquriy
UC16-16
67
16
21
0.07
3218-093
 Inquriy

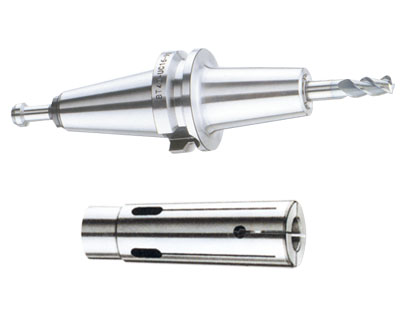

For clamping HSC(High speed cutting) tools on machining centers.
Maximum speed: 15,000 R.P.M
High accuracy: 0.005mm T.I.R

Features

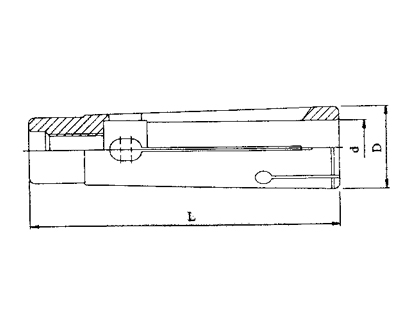

Taper of UC spring collet is 1/120, self-locked function mades high gripping power to prevent slip-out of the cutting tools.
UC spring collet chucks are made by high alloy steel and case hardened up to HRC59˚
And ground to ultra precision.
UC spring collets are slit with a patented slotted-design for increasing gripping power and accuracy. (PAT.103654)
