Boring ronge from Ø20mm - Ø810mm
FEATURES:

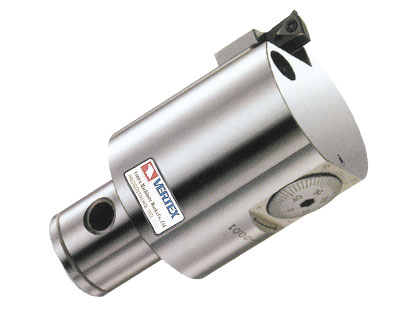

1. FBH finish boring head is suitable for finish boring with working ranges from
Ø20mm to Ø810mm on diameter.
2. The dial has been graduated into 50 divisions, each of which is 0.01mm on
diameter. Available is a sub-dial for finer adjustment.
3. High precision internal lead screw with inner lubrication is free from the effects of
chip, featuring high durability.
4. Coolant nozzle easily cools the insert elongating its working life.
5. Cartridge unit is housed in a square structure with two face support, proving high
stability and rigidity.
|
