VERTEX-MILLING-GRINDING-TOOLING-CNC-LATHE-GRINDER










　　 　 Products Index > VERTEX-TOOLING -SYSTEM-ER-COLLET-DRILL-TAPPING-CHUCK-HOLDER-ARBOR搪孔攻牙刀桿 > Universal Boring And Facing Master Head VBHU SERIEC萬能自動搪孔器套'裝組

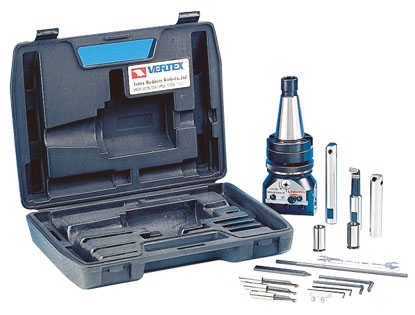

Category Name : Universal Boring And Facing Master Head VBHU SERIEC萬能自動搪孔器套'裝組 Prodouts







ORDER NO.TYPEDRAW BARTHREAD METRICWEIGHTCODE NO.
Inquriy
VBHU-202
MT-3
1/2"-12W
M12X1.5P
6/6.1
3401-001
 Inquriy
VBHU-203
MT-4
5/8"-11W
M16X2.0P
6.3/6.3
3401-002
 Inquriy
VBHU-204
MT-5
1"-8W
M24X3.0P
7.1/7
3401-003
 Inquriy
VBHU-205
R-8
7/16" 20UNF
n/a
6.2/
3401-004
 Inquriy
VBHU-206
NT-30
1/2"12W
M12X1.75P
6/6
3401-005
 Inquriy
VBHU-207
NT-40
5/8"-11W
M16X2.0P
6.3/6.2
3401-006
 Inquriy
VBHU-208
NT-50
1"-8W
M24X3.0P
8.9/8.5
3401-007
 Inquriy
VBHU-209
BT-40
M16X2.0P
/6.9
3401-008
 Inquriy
VBHU-210
C-25
4.5
3401-009
 Inquriy
VBHU-211
SK-40
M16X2.0P
5.6
3401-010
 Inquriy
VBHU-212
SK-50
M24X3.0P
8.3
3401-011
 Inquriy
VBHU-213
BT-50
M24X3.0P
9.7/9.7
3401-012
 Inquriy

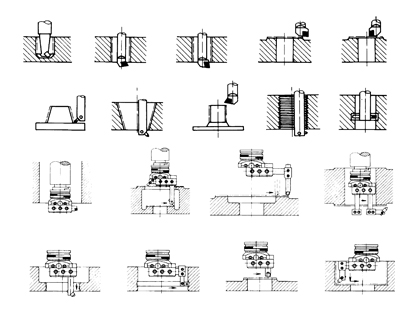

It is construction with precision parts, freedom of selection feeding quantity, auto feed and stop. Processing range from 5mm to 250mm.
