Category Name : VERTEX SQUARE Base Plate Series SBP-SERIES,VERTEX牌-T槽方型副工作台 Prodouts

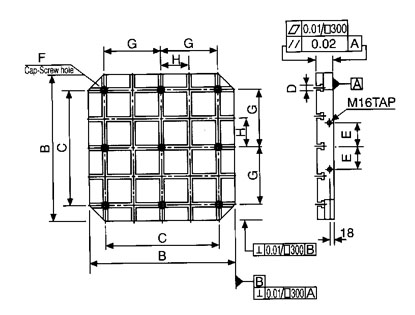

ORDER NO.ABCDEFGHWEIGHTCODE NO.
Inquriy
SBP-4040
60
400
320
14
55
Ø18
160
80
66
4006-020
Inquriy
SBP-5050
60
500
400
14
75
Ø18
200
100
90
4006-021
Inquriy
SBP-6363
60
630
500
14
100
Ø18
250
125
149
4006-022
Inquriy
SBP-8080
60
800
640
14
135
Ø18
320
160
230
4006-023
Inquriy
SBP-4040A
75
400
320
18
55
Ø18
160
80
85
4006-024
Inquriy
SBP-5050A
75
500
400
18
75
Ø18
200
100
118
4006-025
Inquriy
SBP-6363A
75
630
500
18
100
Ø18
250
125
195
4006-026
Inquriy
SBP-8080A
75
800
640
18
135
Ø18
320
160
298
4006-027
Inquriy

VERTEX SQUARE Base Plate Series-SUB TABLE(T-SLOT TYPE),SBP-SERIES

VERTEX牌T槽方形副工作台



SUB TABLE T-SLOT TYPE

Sub-plates used on vertical machining centers and larger milling machines.

They protect the surface of machine table, and provide larger space for setting workpieces and minimize loss of operating time of expensive machine tools.



Material: Close grained cst iron, Annealed

Finish : Top and bottom ground.

ACCURACY-

Parallelism: +-0.02/300mm

Squareness:+-0.02/300mm
