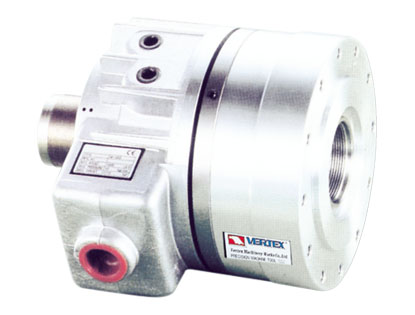

Category Name : Super High Speed Through Hole Rotary Hydraulic Cylinder M高速中空迴轉油壓缸 Prodouts

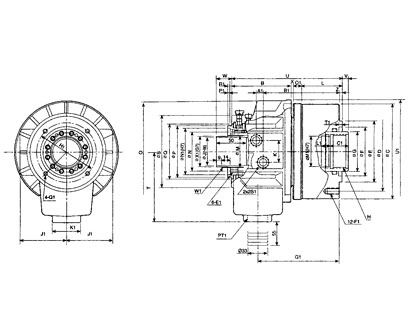

ORDER NO.BCDEFGHJWEIGHTCODE NO.
Inquriy
M1036
101
136
115
100
65
48
M42x1.5
36
8.6
5003-001
Inquriy
M1236
99
154.5
130
100
80
65
M42x1.5
36
13.0
5003-002
Inquriy
M1246
99
154.5
130
100
80
65
M55x2
46
12.0
5003-003
Inquriy
M1546
103
190
170
130
85
70
M55x2
46
18
5003-004
Inquriy
M1552
103
190
170
130
85
70
M60x2
52
16.8
5003-005
Inquriy
M1868
126
215
190
160
120
95
M75x2
68
28.0
5003-006
Inquriy
M1875
126
215
190
160
120
95
M85x2
75
26.0
5003-007
Inquriy
M2091
141
240
215
180
140
110
M100x2
91
37.0
5003-008
Inquriy
M2511
186
310
275
230
166
140
M130x2
117.5
57
5003-009
Inquriy


1.          Small-size light weight:

Comparing with the traditional product, it is small-sized (reduced to MAX 95mm) and a light weight (weighted MAX 4.5kg).

Make its capacity more slable to reduce the burden of the machinery at high speed turning.

2.          The most largest bore:

Comparing with the old product, it has about 20% more bore full diameter for utilizing the capacity of machinery.

3.          The safety mechanism:

It can retain the gripping force with a check valve.
