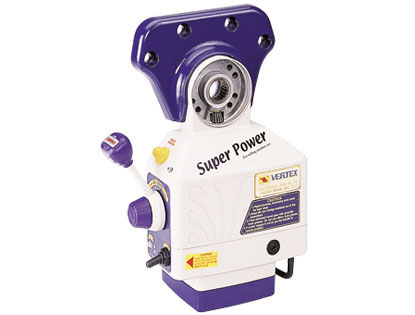

Power TABLE Feed X,Y,Z Axis VPF-250,235,99 SERIES

銑床自動進給裝置

500S Type Series VPF-250X,VPF-250Y,VPF-250Z

The VERTEX vertical milling machines-model: VTM-2S/2V/3V/4V/5V and all milling machine without gearbox table feed device. All type milling/drilling machines high torque. Easy installation. Automatic shutoff. Superior thermal characteristic. Smooth operations. Safety option. Trouble-free performance. Super power.

The max. torque is 650 in /1b

1. New super power design and construction materials.

2. Top quality. Long life span designed.

VPF-235

Features

                1.    The VERTEX power table feed for 2V,3V,5V, milling machine.

                2.    Easy to install, no modification needed.

                3.    Highest quality design and construction materials.

                4.    Circuit panel is designed with easily replaceable insert type connectors.

                5.    Assy-gear (nylon) clutch has built in torque release to prevent damage to shaft and metal gear if too much resistance is met.

VPF-99

Features

                1.    Application: the VERTEX power table feed for Drill/Milling machine.

                2.    Easy to install, no modification needed.

                3.    Highest quality design and construction.

                4.    Circuit panel is designed for easy replacement with insert type connectors.

                5.    Assy-gear clutch has limit for twisting: When power feed is working and accepting tremendous obstacle, the assy-gear clutch will automatically become natural turning in order to reduce damage.

OPTIONAL

Transformer 110V  220V

ORDER NO. VPF-TF

CODE NO. 1009-006

TR1: Output TR2:2 Output

Output: 110V  50/60Hz,

Power supply: 50/60Hz, 1-phase

220, 240, 380, 415, 440V

THIS TRANSFORMER IS FOR VPF-TYPE USE ONLY
